Wood stud walls are framed with double studs spaced at a maximum of sixteen inches on center. Wall intersections and corners are fastened using sixteen-penny nails at twelve inches on center, staggered in a typical pattern. A required structural post is provided at locations where a holddown anchor occurs.

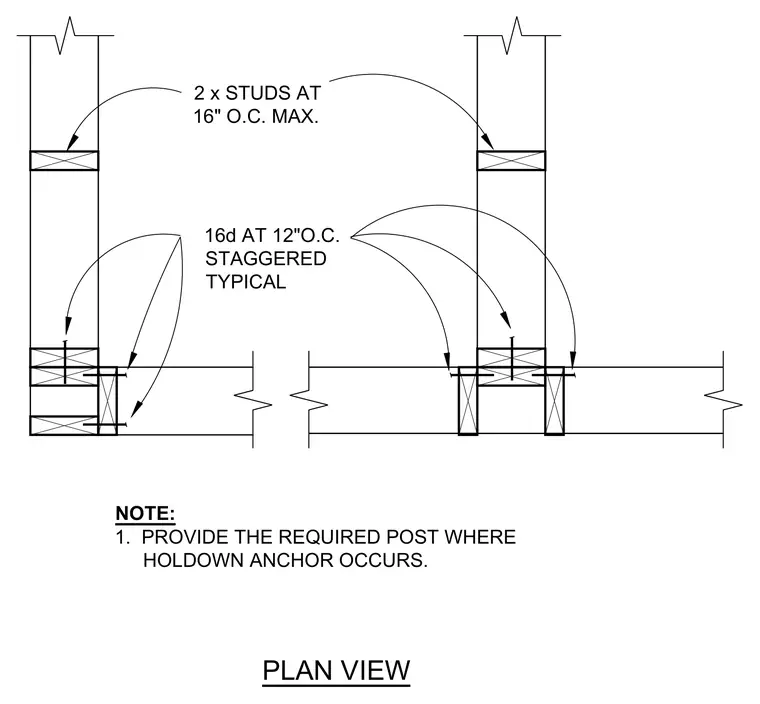

2 x STUDS AT 16" O.C. MAX. 16d AT 12"O.C. STAGGERED TYPICAL NOTE: 1. PROVIDE THE REQUIRED POST WHERE HOLDOWN ANCHOR OCCURS. PLAN VIEW
