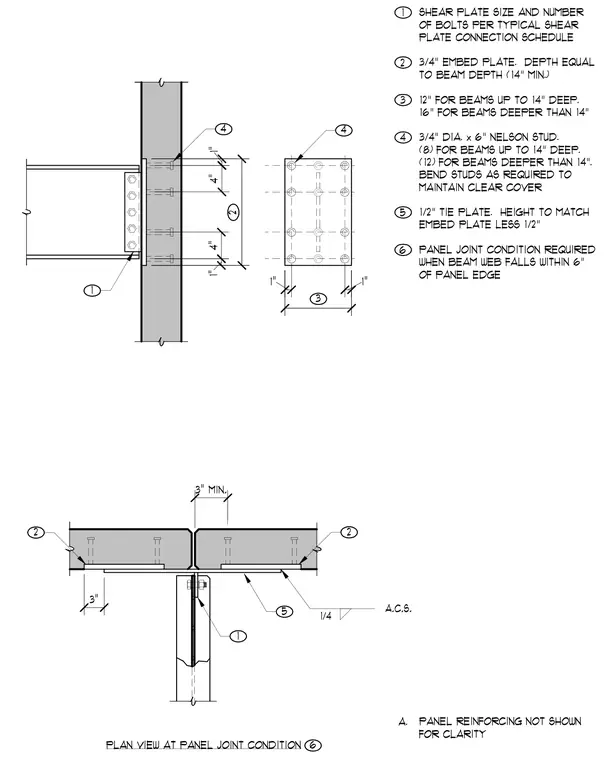

A structural steel beam connects to a concrete tilt-up wall panel. The connection relies on a three-quarter-inch embed plate with a depth matching the beam depth and a minimum of fourteen inches, anchored by three-quarter-inch diameter by six-inch Nelson studs configured in quantities of eight for beams up to fourteen inches deep or twelve for deeper beams. A shear plate of size and bolt count per the typical connection schedule connects the steel beam web to the embed plate. Additionally, a one-half-inch tie plate is used with a height matching the embed plate less one-half inch. A panel joint condition is required when the beam web falls within six inches of the panel edge, omitting panel reinforcing for clarity.
1 SHEAR PLATE SIZE AND NUMBER OF BOLTS PER TYPICAL SHEAR PLATE CONNECTION SCHEDULE 2 3/4" EMBED PLATE. DEPTH EQUAL TO BEAM DEPTH (14" MIN.) 3 12" FOR BEAMS UP TO 14" DEEP. 16" FOR BEAMS DEEPER THAN 14" 4 3/4" DIA. x 6" NELSON STUD. (8) FOR BEAMS UP TO 14" DEEP. (12) FOR BEAMS DEEPER THAN 14". BEND STUDS AS REQUIRED TO MAINTAIN CLEAR COVER 5 1/2" TIE PLATE. HEIGHT TO MATCH EMBED PLATE LESS 1/2" 6 PANEL JOINT CONDITION REQUIRED WHEN BEAM WEB FALLS WITHIN 6" OF PANEL EDGE A. PANEL REINFORCING NOT SHOWN FOR CLARITY 4 4 3 2 1 1" 4" 4" 1" 1" 1" PLAN VIEW AT PANEL JOINT CONDITION 6 1/4 A.C.S. 2 2 5 1 3" MIN. 3"
