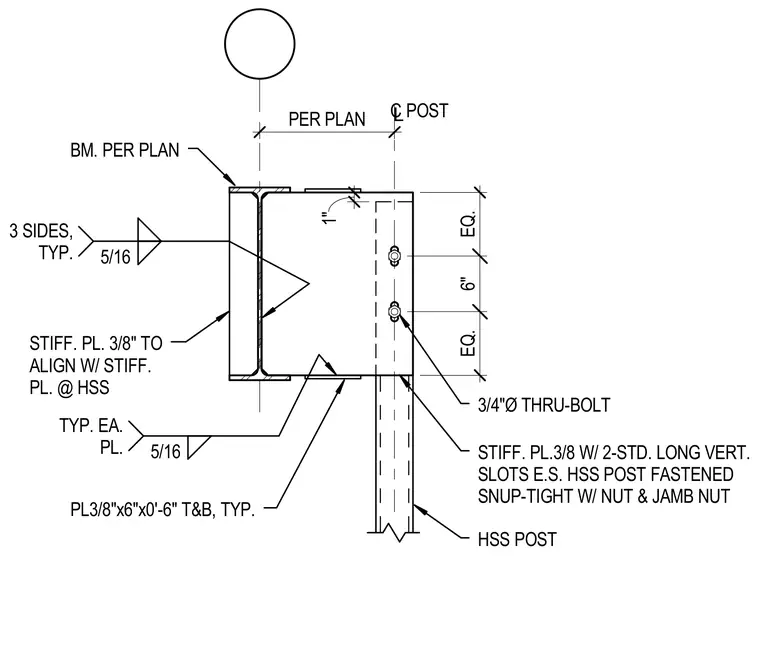

A hollow structural section post connects to a beam sized per plan using three-eighths-inch thick top and bottom plates welded with five-sixteenth-inch fillet welds on three sides. Three-quarter-inch diameter thru-bolts fasten the HSS post through three-eighths-inch stiffener plates containing two standard long vertical slots each side. The assembly is secured using a nut and a jamb nut tightened snug-tight. Additional stiffener plates align with the HSS post connection.
5/16 TYP. EA. PL. L C POST PER PLAN EQ. 6" EQ. 5/16 3 SIDES, TYP. BM. PER PLAN 3/4"Ø THRU-BOLT PL3/8"x6"x0'-6" T&B, TYP. STIFF. PL.3/8 W/ 2-STD. LONG VERT. SLOTS E.S. HSS POST FASTENED SNUP-TIGHT W/ NUT & JAMB NUT HSS POST 1" STIFF. PL. 3/8" TO ALIGN W/ STIFF. PL. @ HSS
