Structural · S-5P372

Single Curtain Panels

Materials

Elements

About this detail

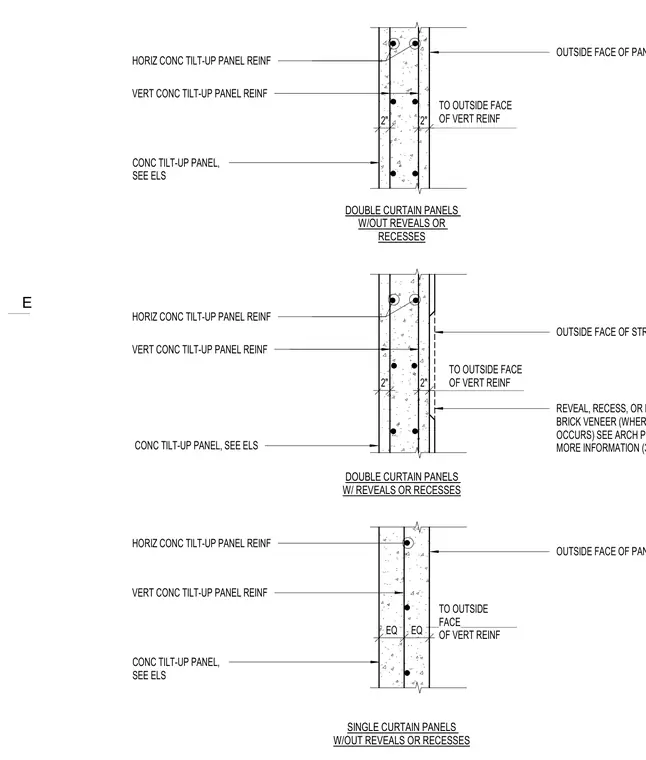

Concrete tilt-up wall panel cross-sections show horizontal and vertical concrete tilt-up panel reinforcement details. The assembly indicates dimensions for vertical reinforcement placement at two inches from the outside face of the panel and centered configurations for single curtain panels. Optional reveals, recesses, or formliners for brick veneer are indicated on double curtain panels where applicable, referencing architectural plans for further information.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
