Beams connect to the centerline of a wide-flange column flange and web using welded plate connections. Plates weld typically to the column flange and web. A three-quarter-inch gap may be used as an option for columns with a flange width of twelve inches or greater.

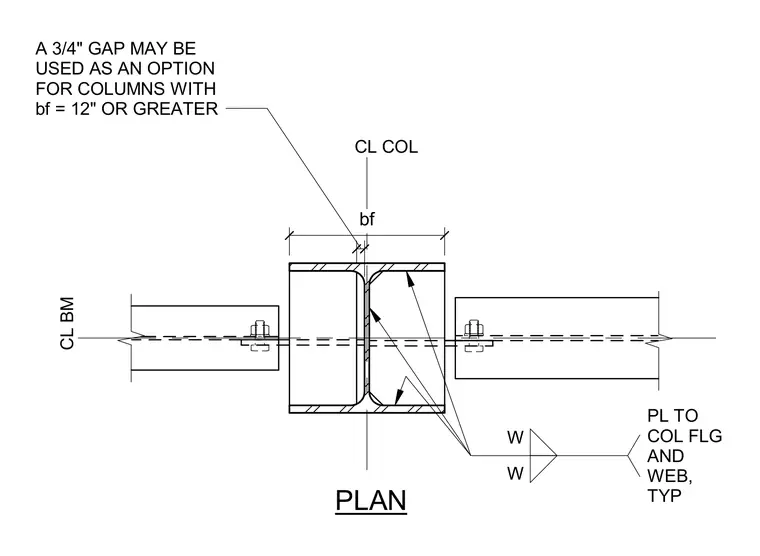

bf CL BM CL COL W W PL TO COL FLG AND WEB, TYP PLAN A 3/4" GAP MAY BE USED AS AN OPTION FOR COLUMNS WITH bf = 12" OR GREATER
