About this detail

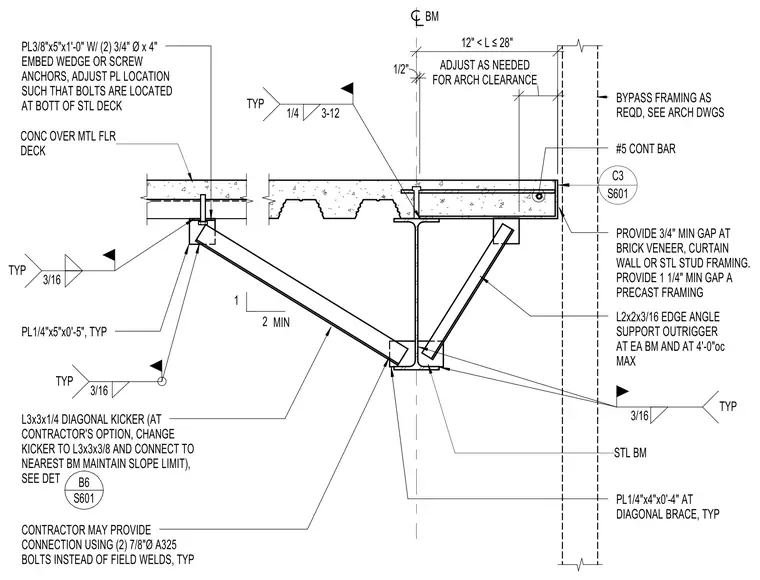

An angle kicker brace formed by an L3x3x1/4 member is connected to a steel beam web using gusset plates and field welds, with an alternate option to use an L3x3x3/8 member connected to the nearest beam maintaining slope limits. A three-sixteenths inch fillet weld secures the connection, or alternatively the contractor may provide a bolted connection using two seven-eighths inch diameter A325 bolts. An edge angle L2x2x3/16 supports outriggers at each beam and at four feet on center maximum. A three-eighths by five by twelve inch plate with two three-quarter inch diameter by four inch embed wedge or screw anchors fastens into the concrete over metal floor deck. Clearances require a three-quarter inch minimum gap at brick veneer, curtain wall, or steel stud framing, and a one and one-quarter inch minimum gap at precast framing.
