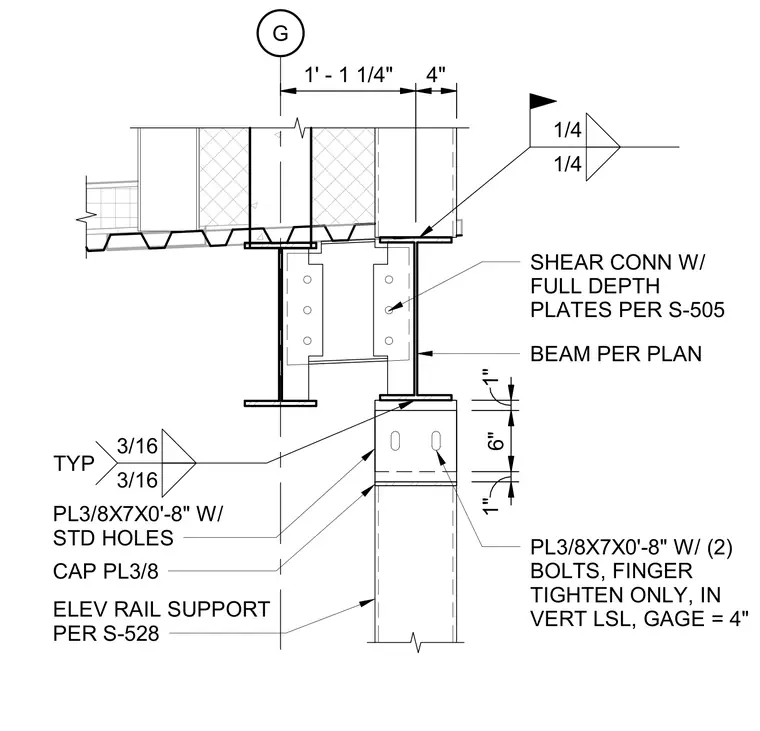

An elevator rail support connects to a vertical laminated strand lumber post using a 3/8-inch cap plate and 3/8-inch by 7-inch by 8-inch plates with two standard bolts tightened finger tight at a 4-inch gauge. Steel beams frame into the assembly using full depth shear connection plates per plan, secured with typical fillet welds. A 3/16-inch fillet weld joins the cap plate assembly, while a 1/4-inch fillet weld attaches the beam connection.
G ELEV RAIL SUPPORT PER S-528 CAP PL3/8 PL3/8X7X0'-8" W/ STD HOLES PL3/8X7X0'-8" W/ (2) BOLTS, FINGER TIGHTEN ONLY, IN VERT LSL, GAGE = 4" 3/16 3/16 TYP SHEAR CONN W/ FULL DEPTH PLATES PER S-505 BEAM PER PLAN 1/4 1/4 1' - 1 1/4" 4" 1" 6" 1"
