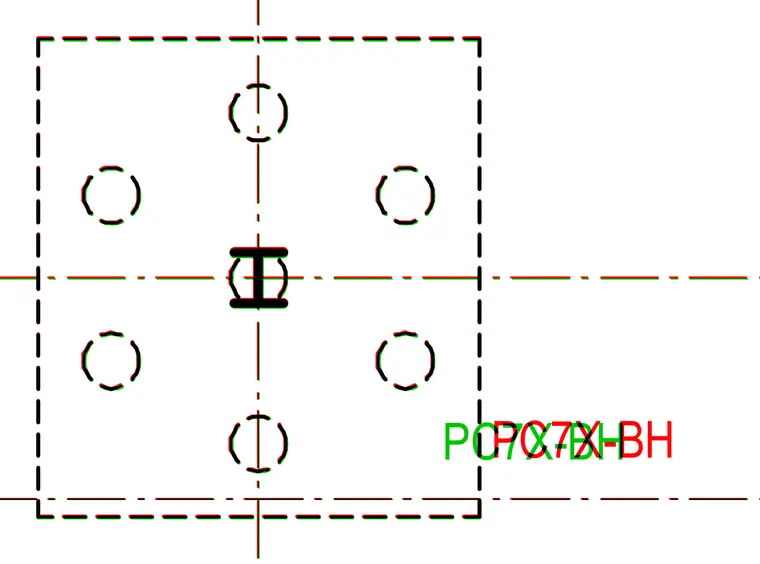

A structural steel column base plate sits centered on a grid intersection with six anchor bolts arranged around the perimeter. The column profile is centered on orthogonal grid lines within the dashed outline of the base plate. Each anchor bolt location is marked with a dashed circle representing the bolt layout pattern.
