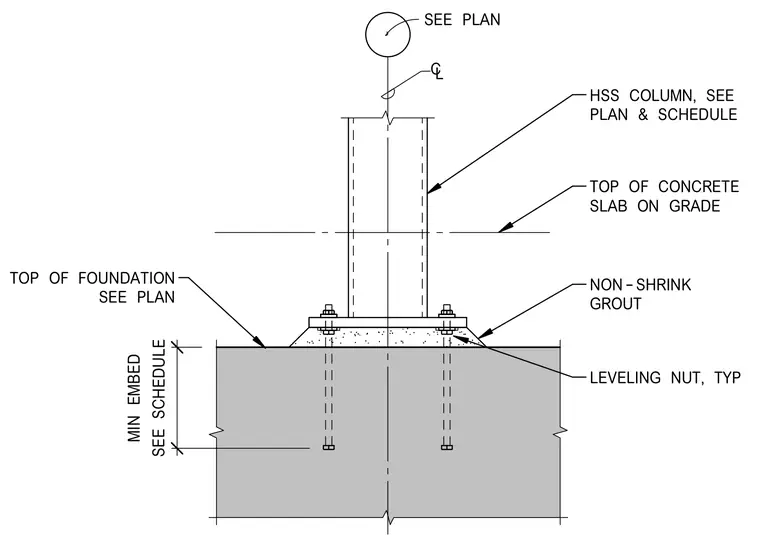

An HSS column is welded to a base plate bearing on non-shrink grout above a concrete foundation or slab on grade. Anchor rods are embedded into the concrete to a specified minimum depth per schedule, secured with typical leveling nuts beneath the base plate. The column size, anchor rod configuration, and embedment depth are sized per plan and structural schedules.
SEE PLAN HSS COLUMN, SEE PLAN & SCHEDULE TOP OF CONCRETE SLAB ON GRADE NON-SHRINK GROUT LEVELING NUT, TYP TOP OF FOUNDATION SEE PLAN C L SEE SCHEDULE MIN EMBED
