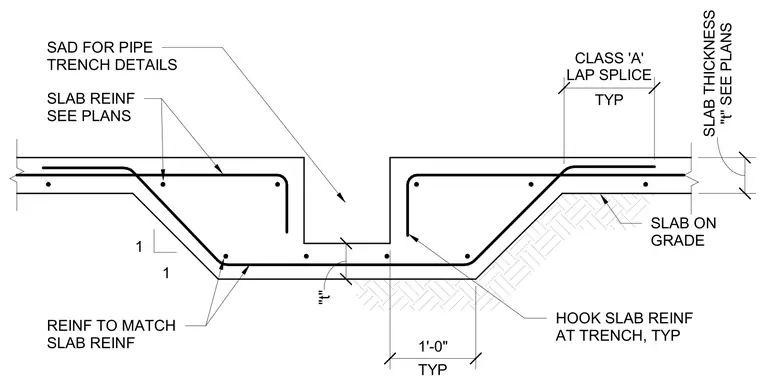

A concrete pipe trench is formed within a slab on grade with a variable slab thickness specified on the structural plans. The main slab reinforcement matches the project structural plans and includes a typical Class A lap splice of one foot zero inches. Reinforcing bars are hooked at the trench edges and profiled to match the sloped sides of the trench with a one-to-one slope. Trench bottom and side reinforcement matches the primary slab reinforcing sizes and spacing.
TYP 1 1 SAD FOR PIPE TRENCH DETAILS SLAB REINF SEE PLANS HOOK SLAB REINF AT TRENCH, TYP SLAB ON GRADE REINF TO MATCH SLAB REINF "t" SEE PLANS SLAB THICKNESS TYP CLASS 'A' LAP SPLICE 1'-0" "t"
