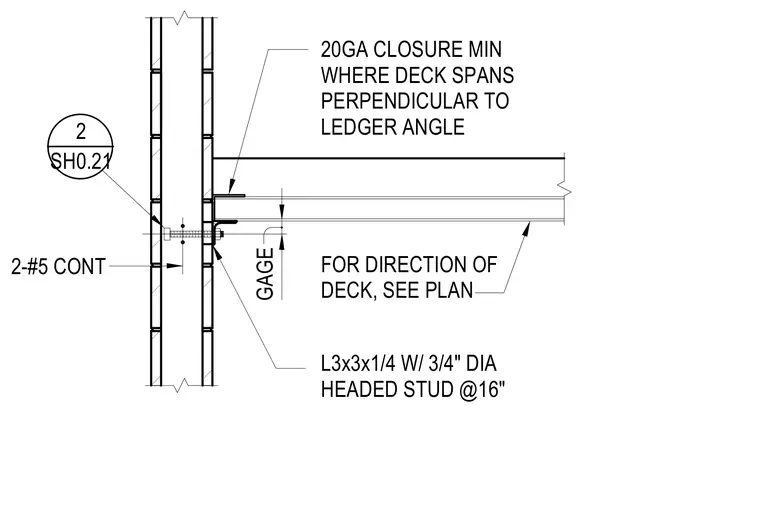

A structural ledger angle supports a metal deck bearing against a vertical concrete wall. The steel ledger angle is secured with three-quarter-inch diameter headed studs spaced at sixteen inches on center. Two continuous number five reinforcing bars run horizontally through the wall assembly. A twenty gauge minimum metal closure is installed where the deck spans perpendicular to the ledger angle.
GAGE L3x3x1/4 W/ 3/4" DIA HEADED STUD @16" FOR DIRECTION OF DECK, SEE PLAN 20GA CLOSURE MIN WHERE DECK SPANS PERPENDICULAR TO LEDGER ANGLE 2-#5 CONT 2 SH0.21
