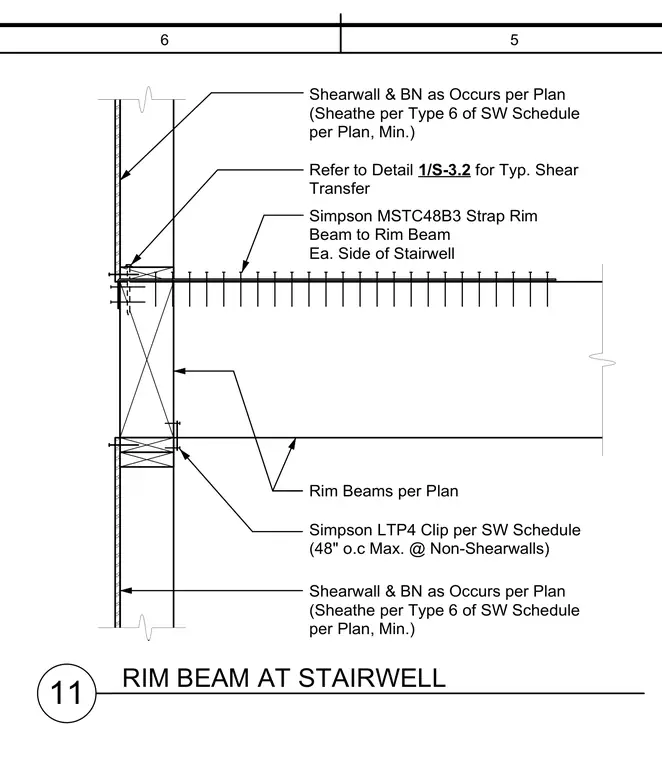

Rim beams connect to the wood shearwall framing at the stairwell opening, secured with a Simpson MSTC48B3 strap running from rim beam to rim beam on each side of the stairwell. Framing clips such as the Simpson LTP4 attach at forty-eight inches on center maximum at non-shearwalls. Shearwall sheathing is applied per the shearwall schedule. The assembly ties the floor framing into the lateral force-resisting system around stair openings.
6 5 11 RIM BEAM AT STAIRWELL Rim Beams per Plan Shearwall & BN as Occurs per Plan (Sheathe per Type 6 of SW Schedule per Plan, Min.) Simpson LTP4 Clip per SW Schedule (48" o.c Max. @ Non-Shearwalls) Refer to Detail 1/S-3.2 for Typ. Shear Transfer Shearwall & BN as Occurs per Plan (Sheathe per Type 6 of SW Schedule per Plan, Min.) Simpson MSTC48B3 Strap Rim Beam to Rim Beam Ea. Side of Stairwell
