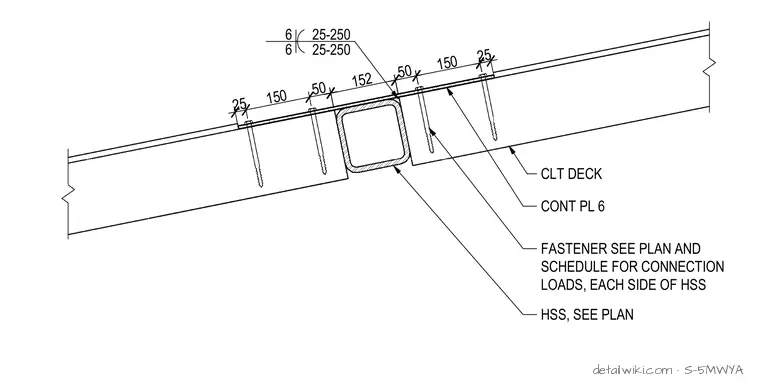

S-5MWYA — Typical Clt Panel To Column Connection

Structural · S-5MWYA

Typical Clt Panel To Column Connection

Units: metric
Sheet: S-OB-5.51
Discipline: Structural

Materials

Steel Timber / Wood

Elements

Columns Connections / Plates Decks

Connections

Deck Attachment HSS Connection Timber / Mass-Timber Connection

Text on the drawing

CLT DECK HSS, SEE PLAN 152 25 150 50 50 150 25 FASTENER SEE PLAN AND SCHEDULE FOR CONNECTION LOADS, EACH SIDE OF HSS CONT PL 6 6 6 25-250 25-250

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
