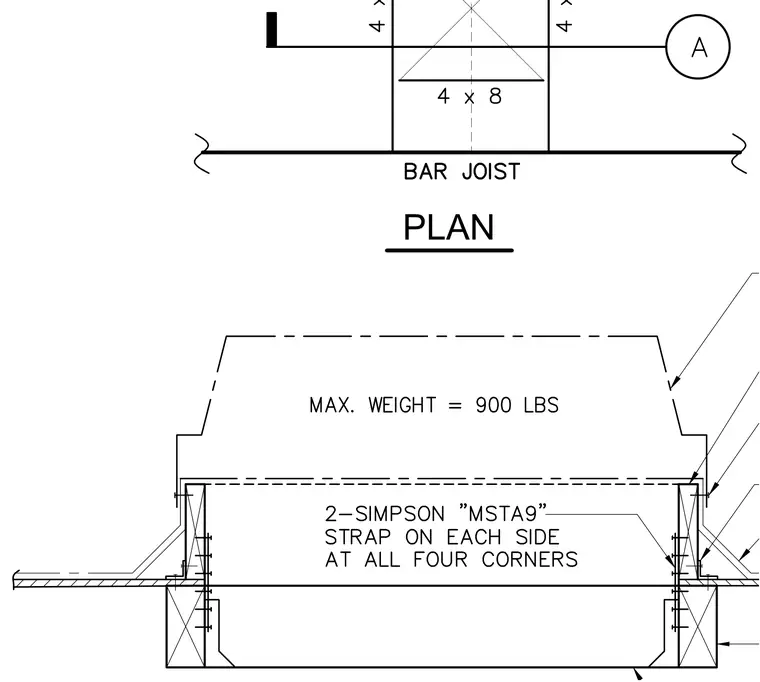

An exhaust fan platform is supported by bar joists framing into wood blocking with a maximum weight capacity of nine hundred pounds. Two Simpson MSTA9 straps are installed on each side at all four corners for structural stability. The assembly integrates framing members with wood members and mechanical equipment curb attachments.
