Structural · S-5MKGJ

16 Gax2" Cont Galvanized Steel Flat Strap

Materials

Elements

About this detail

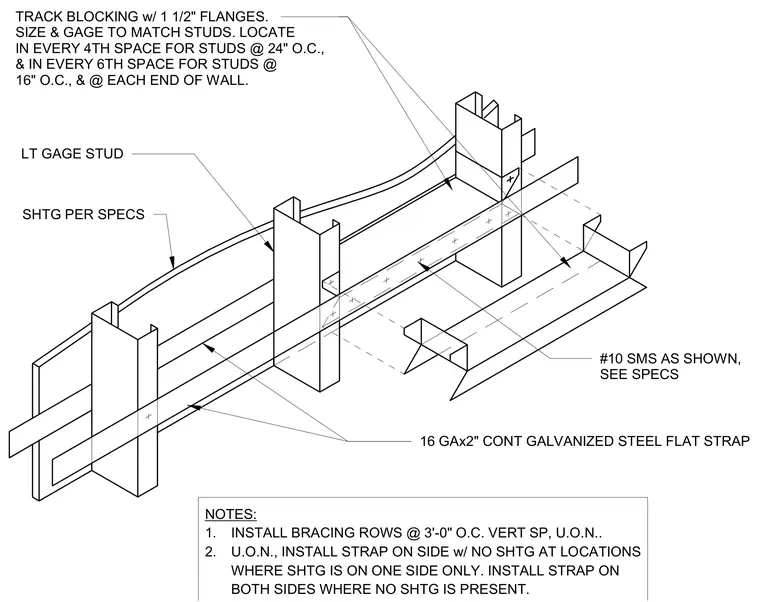

This axonometric detail shows a light gauge steel stud wall bridging assembly reinforced with continuous galvanized steel flat straps and track blocking. Light gauge studs receive track blocking with one and a half inch flanges, sized and gauged to match the studs, located in every fourth space for studs at twenty-four inches on center, every sixth space for studs at sixteen inches on center, and at each end of the wall. Continuous sixteen gauge by two-inch galvanized steel flat straps are attached to the studs using number ten sheet metal screws as specified. Bracing rows are installed at three-foot vertical spacing unless otherwise noted. Straps are installed on the side with no sheathing when sheathing is present on one side only, and on both sides where no sheathing is present.
