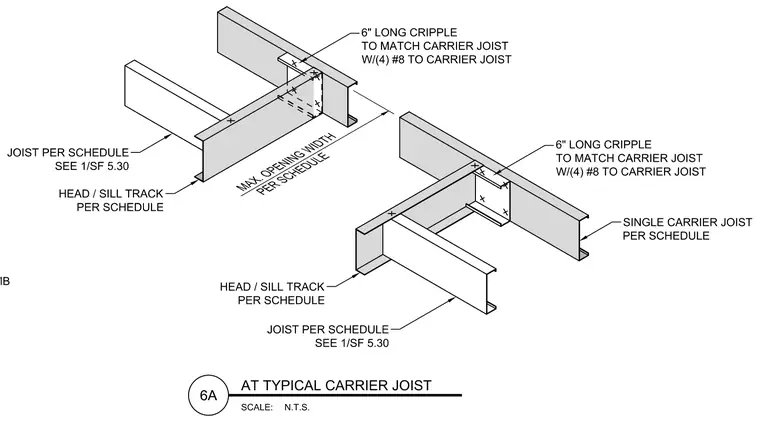

Cold-formed steel framing at a rough opening with a carrier joist. A six-inch long cripple matching the carrier joist profile connects using four number eight screws. The head and sill track and joists are sized per schedule.
