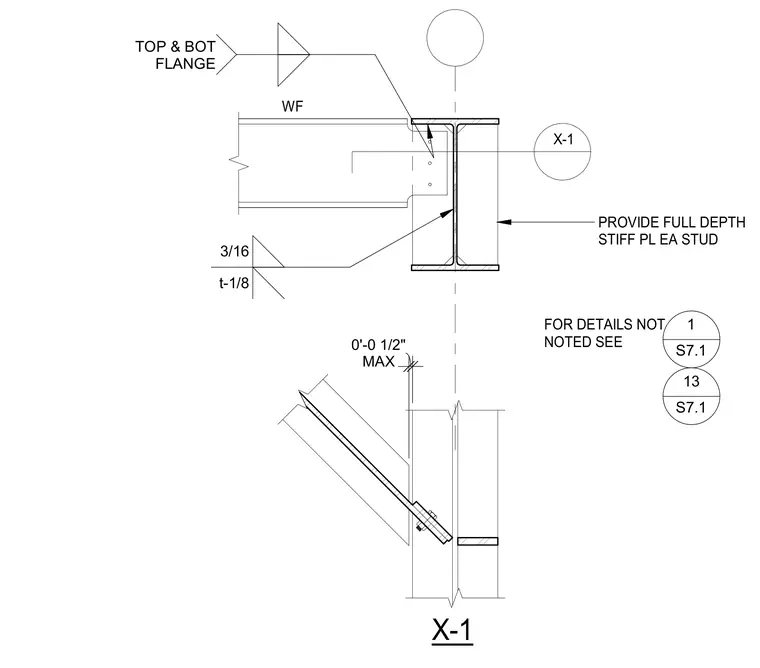

A skewed wide-flange beam frames into the web of a supporting wide-flange column or beam with a maximum clearance of zero to one-half inch at the top and bottom flanges. Full-depth stiffener plates are provided on each side of the support web aligning with the framing beam flanges. The connection utilizes welded joints with specified fillet weld sizes.
MAX 0'-0 1/2" TOP & BOT FLANGE t-1/8 3/16 X-1 PROVIDE FULL DEPTH STIFF PL EA STUD FOR DETAILS NOT NOTED SEE 1 S7.1 13 S7.1 X-1 WF
