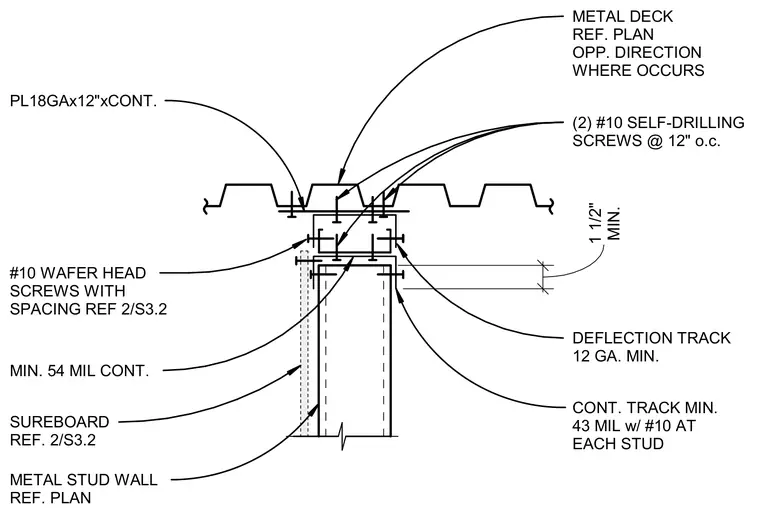

The metal deck bears on a continuous 18-gauge plate secured with two number 10 self-drilling screws at 12 inches on center. A minimum 12-gauge deflection track accommodates vertical movement with a one-and-a-half-inch minimum clearance. A minimum 43-mil continuous track fastens to each stud with number 10 screws. SureBoard panels are installed on the cold-formed steel stud wall per reference details.
METAL DECK REF. PLAN OPP. DIRECTION WHERE OCCURS (2) #10 SELF-DRILLING SCREWS @ 12" o.c. PL18GAx12"xCONT. METAL STUD WALL REF. PLAN DEFLECTION TRACK 12 GA. MIN. SUREBOARD REF. 2/S3.2 MIN. 1 1/2" #10 WAFER HEAD SCREWS WITH SPACING REF 2/S3.2 MIN. 54 MIL CONT. CONT. TRACK MIN. 43 MIL w/ #10 AT EACH STUD
