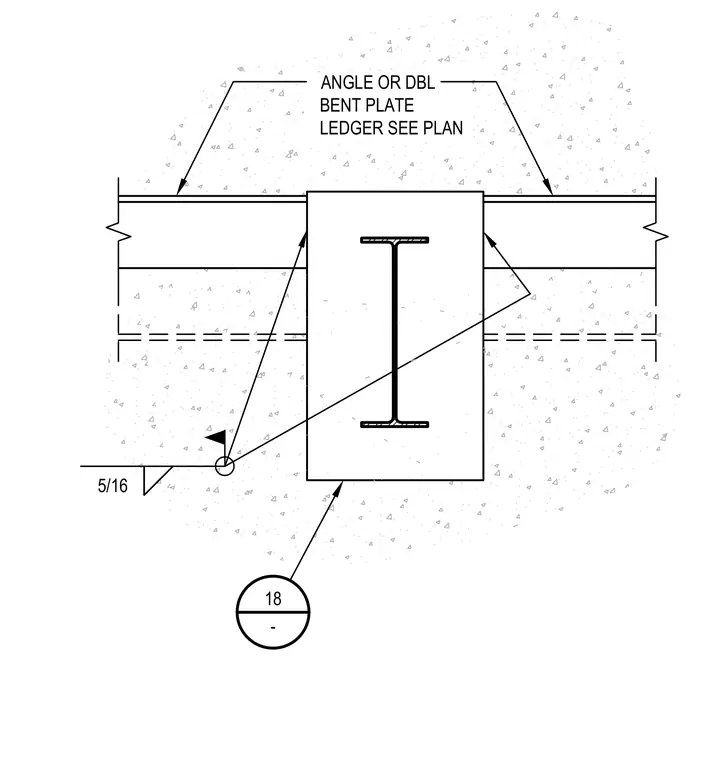

A ledger splice connection utilizes an angle or double bent plate sized per plan. The steel ledger members tie into the central column or beam flange with five-sixteenth inch fillet welds. Concrete or surrounding structural elements encase the connection assembly.
