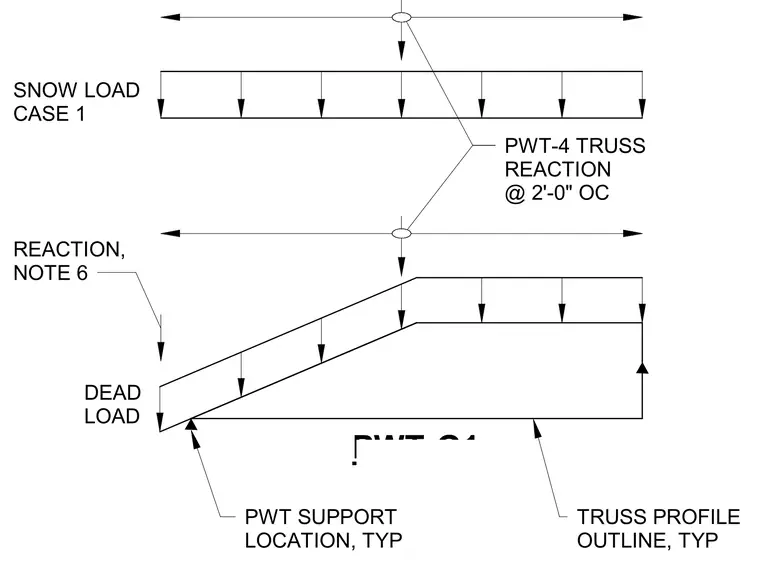

This diagram defines the load application for a PWT-4 parallel chord truss. Snow load case one is applied as a uniform load across the top chord, with reactions calculated at two-foot on-center spacing. Dead load is applied across the truss profile, with support locations and the truss outline indicated as typical. Reaction values are referenced to note six.
