Concrete Retaining Wall Foundation and Slab Intersection

Materials

Concrete Glass / Glazing

Elements

Walls Retaining Walls Ramps Floors / Slabs Foundations / Footings Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

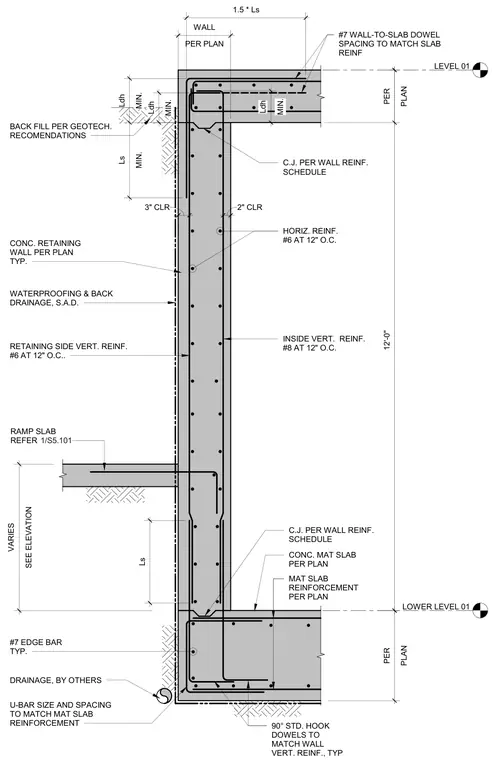

This concrete retaining wall detail shows the intersection between a reinforced concrete retaining wall, a foundation mat slab, and an intermediate ramp slab. The vertical retaining wall includes number eight inside vertical reinforcement spaced at twelve inches on center, number six retaining side vertical reinforcement at twelve inches on center, and number six horizontal reinforcement at twelve inches on center. Waterproofing and back drainage are applied to the exterior face, with backfill placed per geotechnical recommendations. The base of the wall ties into a concrete mat slab per plan utilizing number seven edge bars with standard ninety-degree hook dowels matching the wall vertical reinforcement, along with U-bars sized and spaced to match the mat slab reinforcement. An intermediate ramp slab ties into the wall with dowels and extends per elevation, and the top of the wall connects to a Level 01 slab with number seven wall-to-slab dowels.
