Low Roof Deck to High Roof Deck Transition

Materials

Steel

Elements

Beams Roofs Decks Arches Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

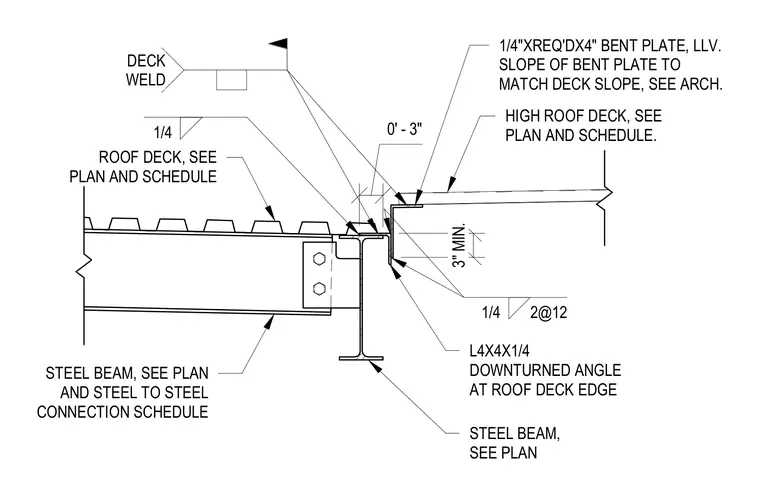

A low roof deck bears on a structural steel beam, with the low roof deck welded using a quarter-inch weld at twelve inches on center. A quarter-inch by required by four-inch bent plate transitions from the low roof deck to the high roof deck, with its slope matching the deck slope per architectural requirements. An L4x4x1/4 downturned angle is positioned at the roof deck edge and welded with quarter-inch welds at twelve inches on center to the supporting steel beam. The high roof deck ties into the bent plate assembly with a three-inch minimum vertical dimension and a three-inch horizontal offset.
