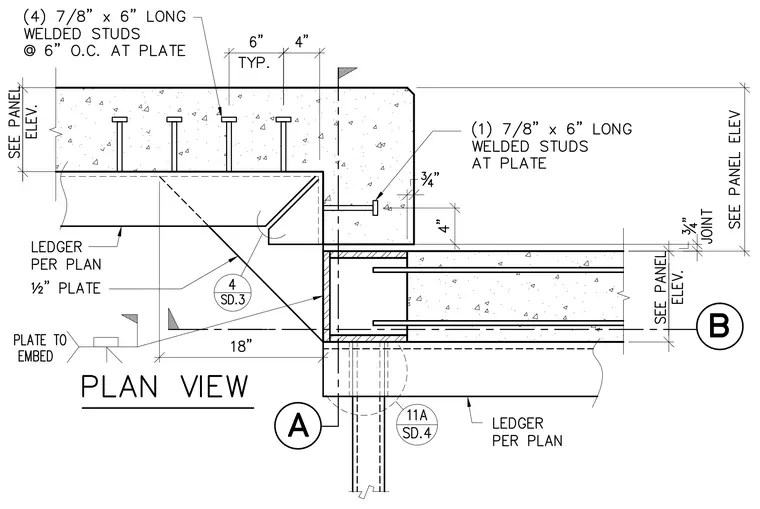

This precast concrete panel corner connection features a one-half-inch plate tied into the concrete via four seven-eighth-inch by six-inch long welded studs spaced at six inches on center. An additional single seven-eighth-inch by six-inch long welded stud is embedded at the plate return with a three-quarter-inch clearance. A ledger sized per plan ties into the assembly alongside a plate-to-embed welded connection. Joint spacing is dimensioned at three-quarters of an inch with panel elevations referenced per plan.
