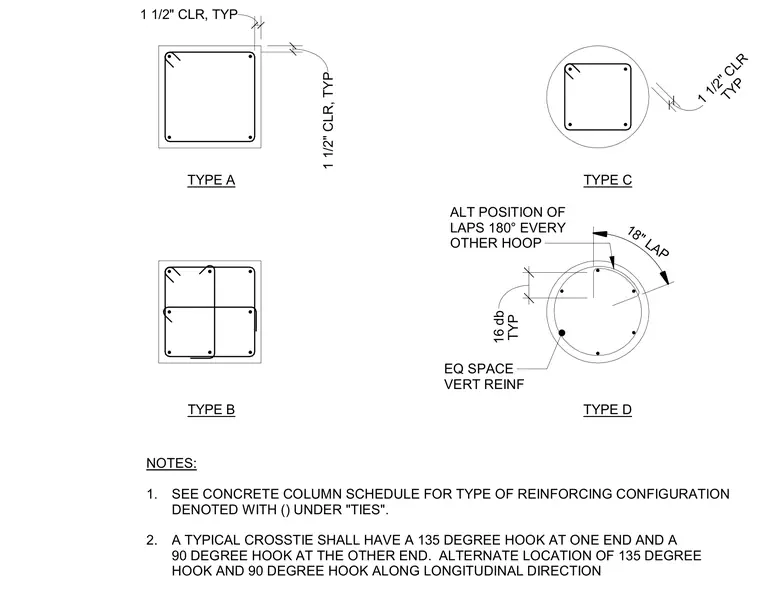

Concrete column tie configurations show the arrangement of vertical reinforcing bars, column ties, and crossties for square and circular column sections. Rectangular columns feature configurations Type A and Type B with designated tie layouts and a typical one-and-a-half-inch concrete clearance. Circular columns feature Type C and Type D with equally spaced vertical reinforcement and specified lap splice requirements alternating every other hoop by one hundred eighty degrees. Crossties require a one hundred thirty-five-degree hook at one end and a ninety-degree hook at the other, alternating along the longitudinal direction.
TYP 1 1/2" CLR TYPE B TYPE D TYPE A TYPE C NOTES: 1. SEE CONCRETE COLUMN SCHEDULE FOR TYPE OF REINFORCING CONFIGURATION DENOTED WITH () UNDER "TIES". 2. A TYPICAL CROSSTIE SHALL HAVE A 135 DEGREE HOOK AT ONE END AND A 90 DEGREE HOOK AT THE OTHER END. ALTERNATE LOCATION OF 135 DEGREE HOOK AND 90 DEGREE HOOK ALONG LONGITUDINAL DIRECTION 69° 18" LAP 6" 16 db ALT POSITION OF LAPS 180° EVERY OTHER HOOP EQ SPACE VERT REINF 1 1/2" CLR, TYP 1 1/2" CLR, TYP TYP
