Structural · S-5KG9J

Typical Connection at Brace Bottom Weak Axis

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

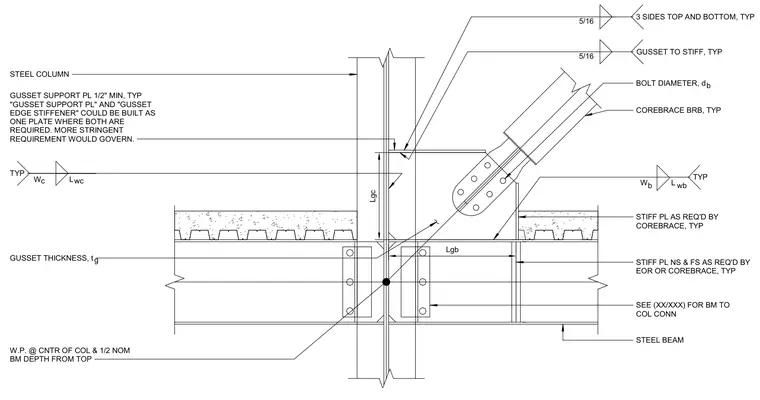

A CoreBrace buckling-restrained brace connects to a steel column and steel beam along the weak axis. A gusset plate with a minimum thickness of one-half inch attaches to the column, reinforced by five-sixteenth-inch fillet welds on three sides top and bottom. Stiffener plates are provided near side and far side as required by the engineer of record or manufacturer. The gusset support plate and gusset edge stiffener may be combined into a single plate where both are required, governed by the more stringent design requirement. The work point is located at the center of the column and one-half of the nominal beam depth from the top.
