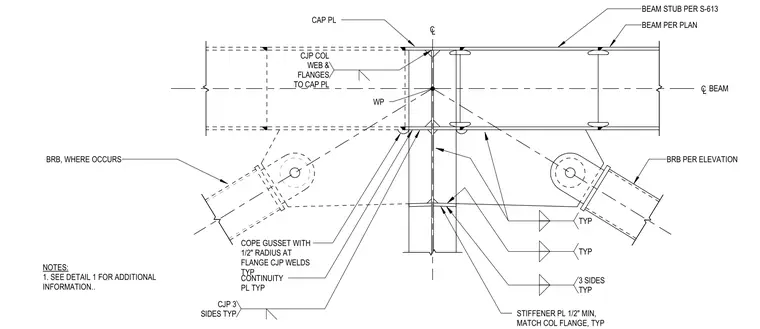

Buckling-restrained braces frame into a structural steel column web with the braces positioned below the intersecting beam. The connection utilizes a cap plate welded to the column web and flanges with complete joint penetration welds, along with typical continuity plates. A gusset plate with a one-half inch radius cope connects the brace to the assembly using complete joint penetration welds on three sides. One-half inch minimum stiffener plates matching the column flange are provided at the connection locations.
STIFFENER PL 1/2" MIN, MATCH COL FLANGE, TYP BRB PER ELEVATION TYP TYP 3 SIDES TYP BRB, WHERE OCCURS WP COPE GUSSET WITH 1/2" RADIUS AT FLANGE CJP WELDS TYP CJP 3 SIDES TYP CONTINUITY PL TYP CAP PL CJP COL WEB & FLANGES TO CAP PL BEAM PER PLAN BEAM STUB PER S-613 NOTES: 1. SEE DETAIL 1 FOR ADDITIONAL INFORMATION.. C L C L BEAM
