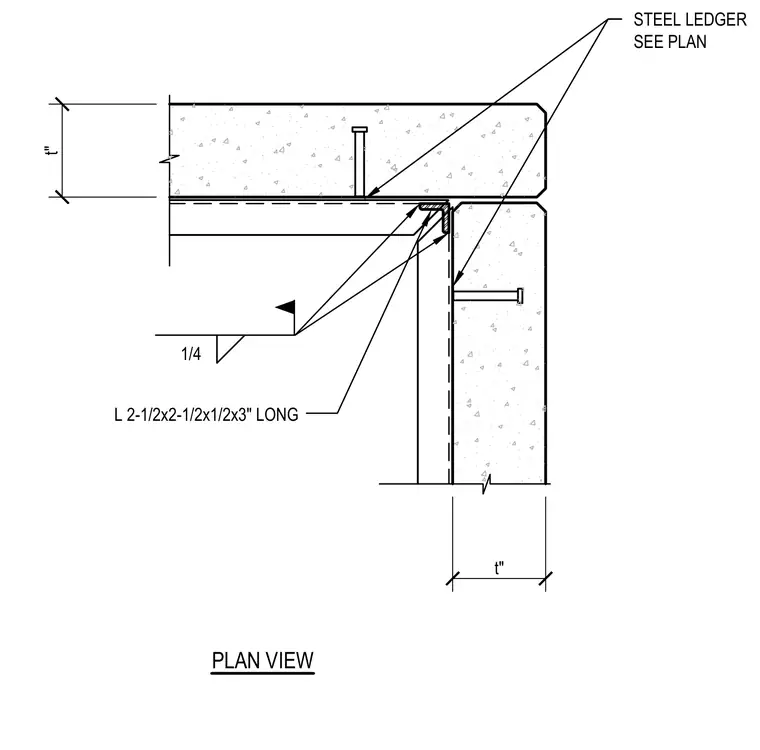

A steel angle measuring 2-1/2 inches by 2-1/2 inches by 1/2 inch and 3 inches long acts as a ledger for the precast concrete panels. The angle connects to the steel ledger sized per plan with a quarter-inch fillet weld.
