Structural · S-5K5JA

Typical Hollow Unit Masonry Wall Details and Reinforcement

Materials

Concrete Masonry / CMU Glass / Glazing

Elements

Beams Walls Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

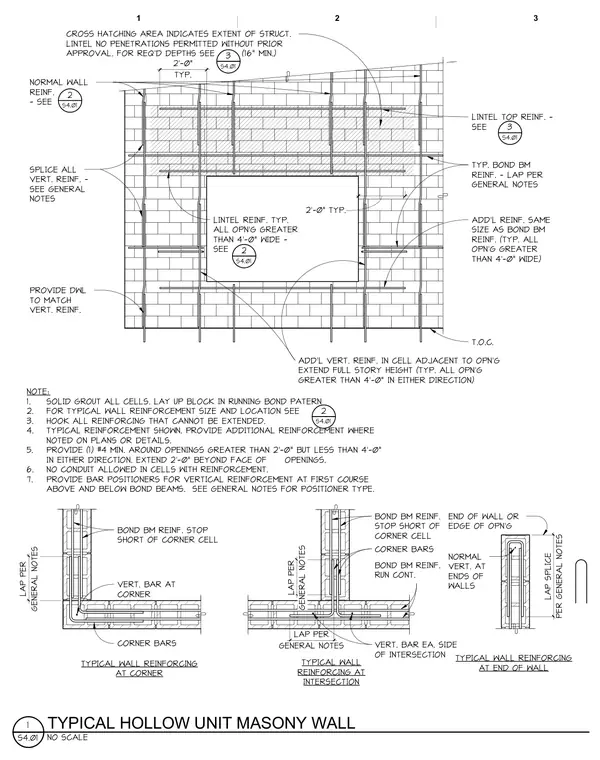

Reinforcement details for a hollow unit masonry wall, including vertical wall reinforcement, bond beams, and lintel construction around openings. Plan details across the bottom show specific rebar placement at corners, wall intersections, and wall ends, with lap splices detailed per general notes. Additional vertical reinforcement is provided in cells adjacent to openings greater than four feet in width, extending full story height. Solid grouting is required for all cells, laid up in a running bond pattern with bar positioners installed for vertical reinforcement above and below bond beams.
