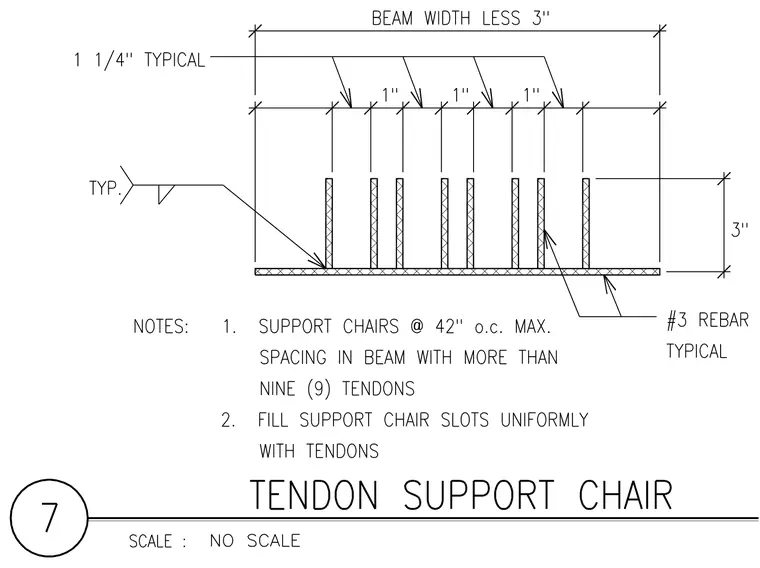

This structural detail shows a tendon support chair assembly spanning the beam width less three inches. The assembly incorporates number three rebar positioned at three inches in height with typical spacing of one and one-quarter inches. Individual tendon slots are spaced at one-inch intervals across the chair base. Support chairs are spaced at forty-two inches on center maximum in beams containing more than nine tendons, with slots filled uniformly.
