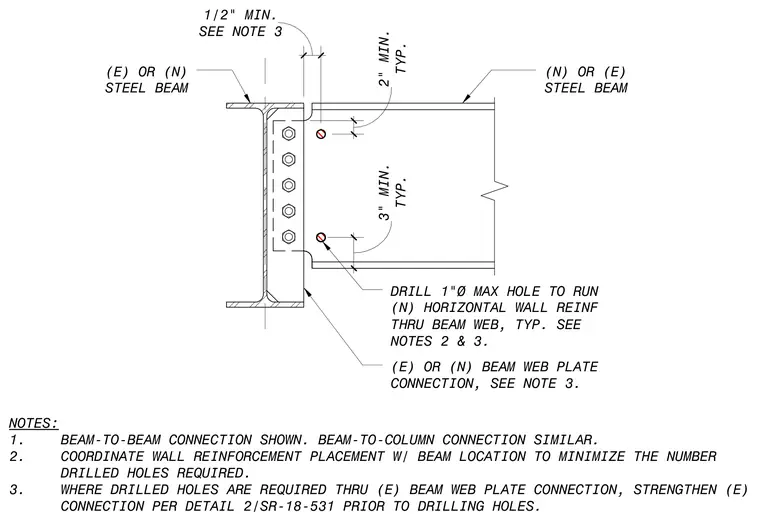

New or existing steel beams connect via a beam web plate connection with a half-inch minimum clearance. Drilled holes of one-inch maximum diameter allow new horizontal wall reinforcement to pass through the beam web. Notes require coordinating wall reinforcement placement with beam location to minimize drilled holes, and strengthening existing connections per engineering details prior to drilling where required.
(N) OR (E) STEEL BEAM (E) OR (N) STEEL BEAM NOTES: 1. BEAM-TO-BEAM CONNECTION SHOWN. BEAM-TO-COLUMN CONNECTION SIMILAR. 2. COORDINATE WALL REINFORCEMENT PLACEMENT W/ BEAM LOCATION TO MINIMIZE THE NUMBER DRILLED HOLES REQUIRED. 3. WHERE DRILLED HOLES ARE REQUIRED THRU (E) BEAM WEB PLATE CONNECTION, STRENGTHEN (E) CONNECTION PER DETAIL 2/SR-18-531 PRIOR TO DRILLING HOLES. DRILL 1"Ø MAX HOLE TO RUN (N) HORIZONTAL WALL REINF THRU BEAM WEB, TYP. SEE NOTES 2 & 3. TYP. 3" MIN. TYP. 2" MIN. (E) OR (N) BEAM WEB PLATE CONNECTION, SEE NOTE 3. SEE NOTE 3 1/2" MIN.
