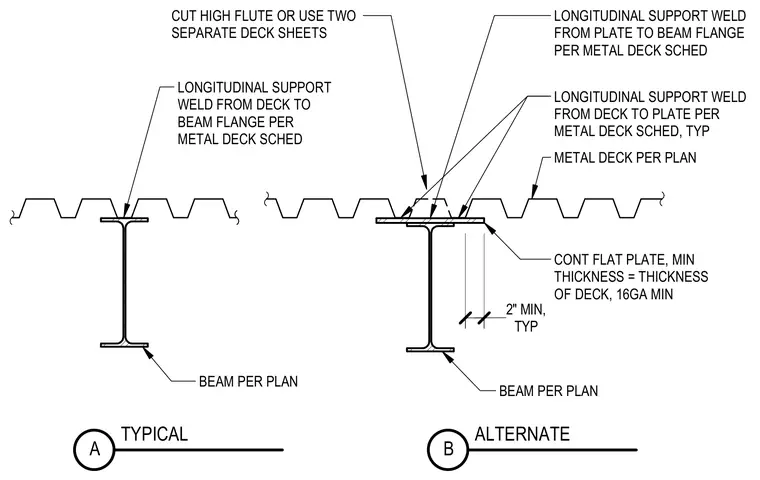

Metal deck runs parallel to the supporting steel beam per plan, utilizing either a standard direct attachment or an alternate configuration with a continuous flat plate. Option A welds the longitudinal support directly from the metal deck to the beam flange according to the metal deck schedule. Option B introduces a continuous flat plate with a minimum thickness matching the deck and a sixteen-gauge minimum, providing support where high flutes are cut or two separate deck sheets are used. Longitudinal support welds secure the plate to the beam flange and the deck to the plate per the metal deck schedule. A two-inch minimum dimension maintains typical placement requirements.
CONT FLAT PLATE, MIN THICKNESS = THICKNESS OF DECK, 16GA MIN METAL DECK PER PLAN CUT HIGH FLUTE OR USE TWO SEPARATE DECK SHEETS LONGITUDINAL SUPPORT WELD FROM PLATE TO BEAM FLANGE PER METAL DECK SCHED LONGITUDINAL SUPPORT WELD FROM DECK TO PLATE PER METAL DECK SCHED, TYP BEAM PER PLAN TYP 2" MIN, BEAM PER PLAN TYPICAL A LONGITUDINAL SUPPORT WELD FROM DECK TO BEAM FLANGE PER METAL DECK SCHED ALTERNATE B
