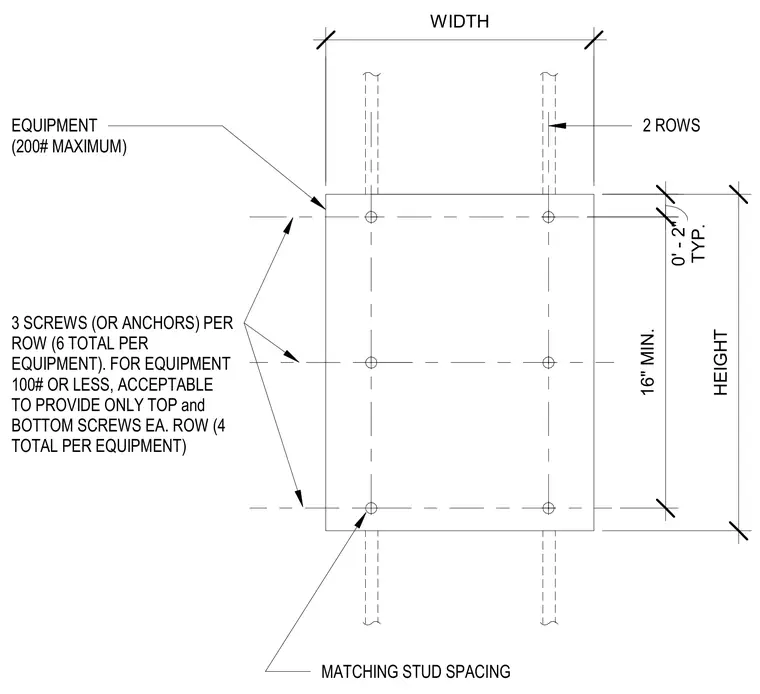

Equipment weighing up to two hundred pounds is secured to stud framing with matching stud spacing across two vertical rows. Each row requires three screws or anchors for a total of six per equipment item. For equipment weighing one hundred pounds or less, only the top and bottom screws in each row are required for a total of four. The minimum height is sixteen inches with typical two-inch spacing at the top.
MATCHING STUD SPACING 3 SCREWS (OR ANCHORS) PER ROW (6 TOTAL PER EQUIPMENT). FOR EQUIPMENT 100# OR LESS, ACCEPTABLE TO PROVIDE ONLY TOP and BOTTOM SCREWS EA. ROW (4 TOTAL PER EQUIPMENT) EQUIPMENT (200# MAXIMUM) 2 ROWS TYP. 0' - 2" HEIGHT WIDTH 16" MIN.
