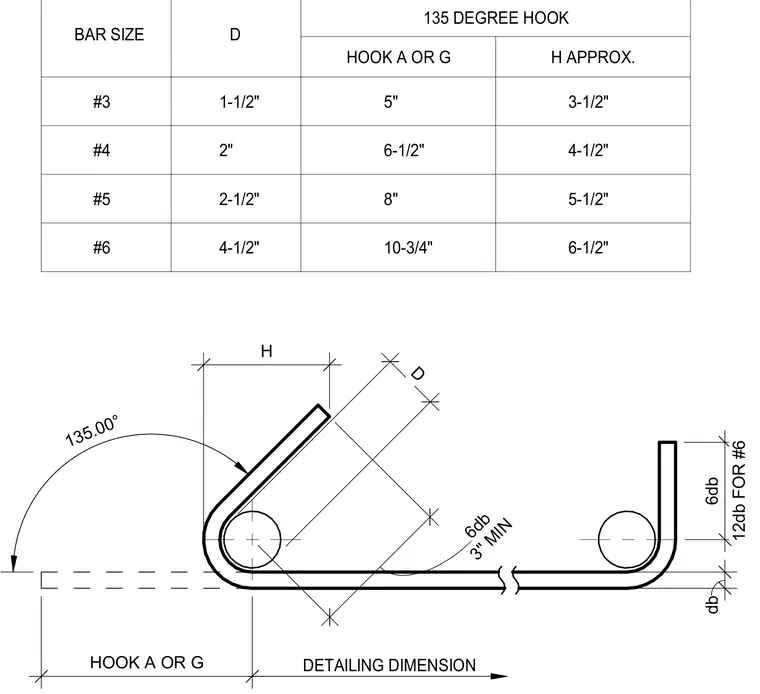

This drawing outlines the standard detailing requirements and bend dimensions for seismic stirrups and tie hooks featuring a one hundred thirty-five degree hook. A reference table provides specific bend diameter D, hook extension length A or G, and approximate total hook length H for bar sizes number three through number six. The diagram indicates a bend angle of one hundred thirty-five degrees with a minimum extension of six times the bar diameter or three inches. Additional annotations specify detailing dimensions and extension lengths, including twelve times the bar diameter for number six bars.
BAR SIZE D HOOK A OR G 135 DEGREE HOOK H APPROX. #3 #4 #5 #6 1-1/2" 2" 2-1/2" 4-1/2" 5" 6-1/2" 8" 10-3/4" 3-1/2" 5-1/2" 6-1/2" 4-1/2" 12db FOR #6 6db db HOOK A OR G H D DETAILING DIMENSION 135.00° 3" MIN 6db
