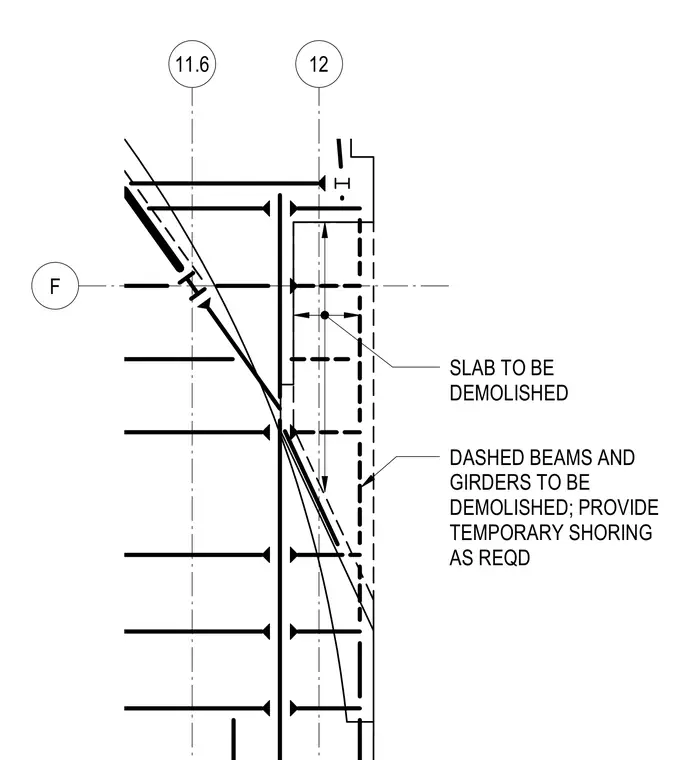

Concrete slabs are designated for demolition adjacent to structural grid lines, requiring temporary shoring as needed for dashed beams and girders. Dashed outlines denote framing members slated for removal while maintaining overall structural stability.
12 F 11.6 SLAB TO BE DEMOLISHED DASHED BEAMS AND GIRDERS TO BE DEMOLISHED; PROVIDE TEMPORARY SHORING AS REQD
