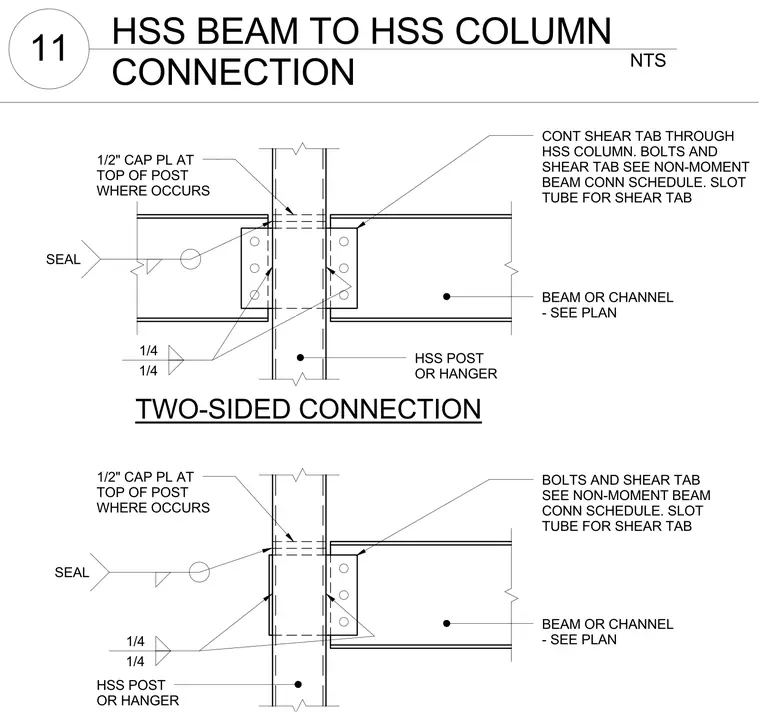

A structural steel connection framing beams or channels to an HSS post or hanger features a continuous shear tab passing through the slotted HSS column. A one-half-inch cap plate is placed at the top of the post where required. The shear connection utilizes a continuous shear tab extending through the column tube, with bolts and plate sizing specified per the non-moment beam connection schedule. Fillet welds of one-quarter-inch size secure the connection assembly with applied perimeter sealant.
1/2" CAP PL AT TOP OF POST WHERE OCCURS BEAM OR CHANNEL - SEE PLAN CONT SHEAR TAB THROUGH HSS COLUMN. BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB 1/4 1/4 SEAL BEAM OR CHANNEL - SEE PLAN BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB HSS POST OR HANGER 1/4 1/4 SEAL TWO-SIDED CONNECTION HSS POST OR HANGER 1/2" CAP PL AT TOP OF POST WHERE OCCURS NTS 11 HSS BEAM TO HSS COLUMN CONNECTION
