A wide-flange column is topped with a cap plate measuring one-half inch thick for W10 or W8 sections, or seven-eighths inch thick for W14 or W12 sections, unless otherwise noted. A three-eighths-inch fillet weld is used typically at the flange connection. A web stiffener plate welded with a size equal to half the web thickness is centered within the column profile. A single plate shear tab is welded to the column face where it occurs to receive the framing beam.

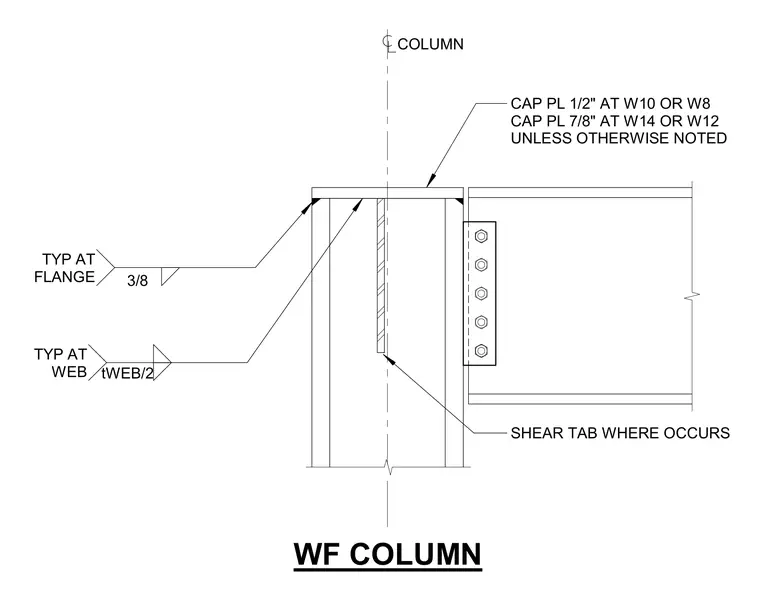

CAP PL 1/2" AT W10 OR W8 CAP PL 7/8" AT W14 OR W12 UNLESS OTHERWISE NOTED SHEAR TAB WHERE OCCURS COLUMN WF COLUMN 3/8 TYP AT FLANGE TYP AT WEB tWEB/2
