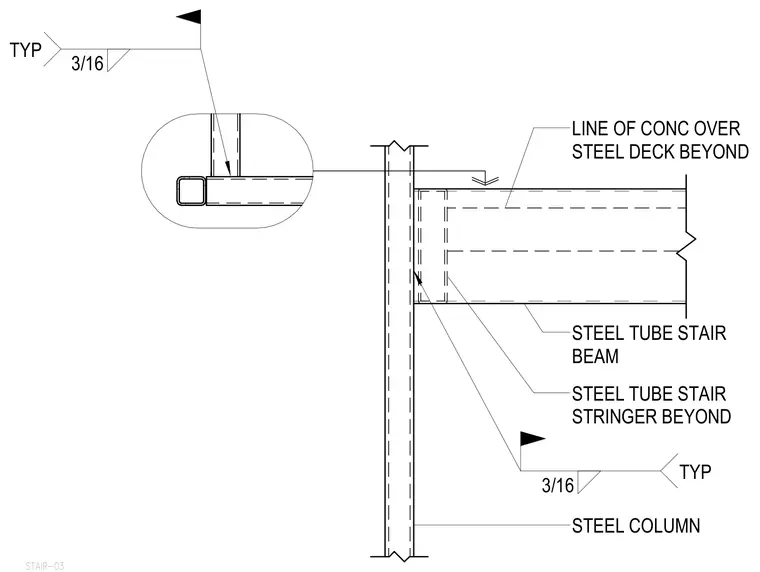

A structural steel tube stair beam connects to a vertical steel column with three-sixteenths inch typical fillet welds. A steel tube stair stringer extends beyond the main beam connection. A concrete fill over metal deck floor system terminates near the column with a line of concrete shown beyond. A magnified inset view details the connection interface between the steel tube members with typical three-sixteenths inch welds.
STEEL COLUMN STEEL TUBE STAIR BEAM LINE OF CONC OVER STEEL DECK BEYOND STEEL TUBE STAIR STRINGER BEYOND 3/16 TYP 3/16 TYP
