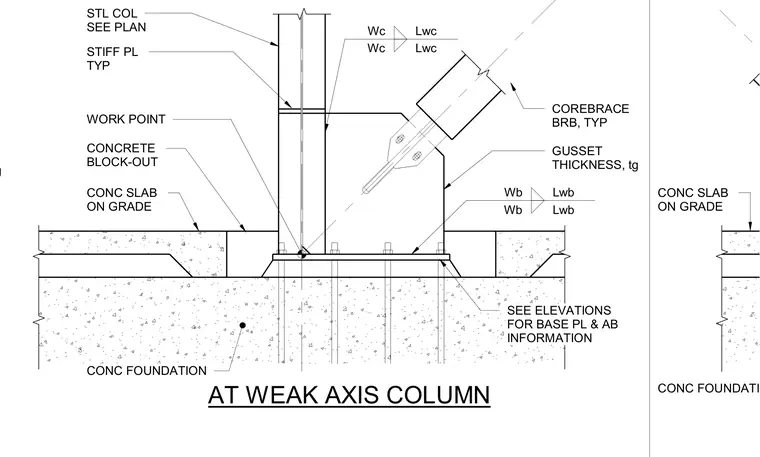

A structural steel column connects to a concrete foundation via a base plate with anchor bolts sized per structural plans. A buckling-restrained brace (CoreBrace BRB) frames into a gusset plate welded to the column and base plate assembly, with typical stiffener plates provided at the column web. A concrete block-out is formed in the surrounding concrete slab on grade to accommodate the gusset and base connection. Weld sizes and plate thicknesses are indicated by variable callouts on the drawing.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL TYP WORK POINT CONC FOUNDATION COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb Wc Lwc Wc Lwc THICKNESS, tg AT WEAK AXIS COLUMN SEE ELEVATIONS FOR BASE PL & AB INFORMATION CONC SLAB ON GRADE CONC FOUNDATION
