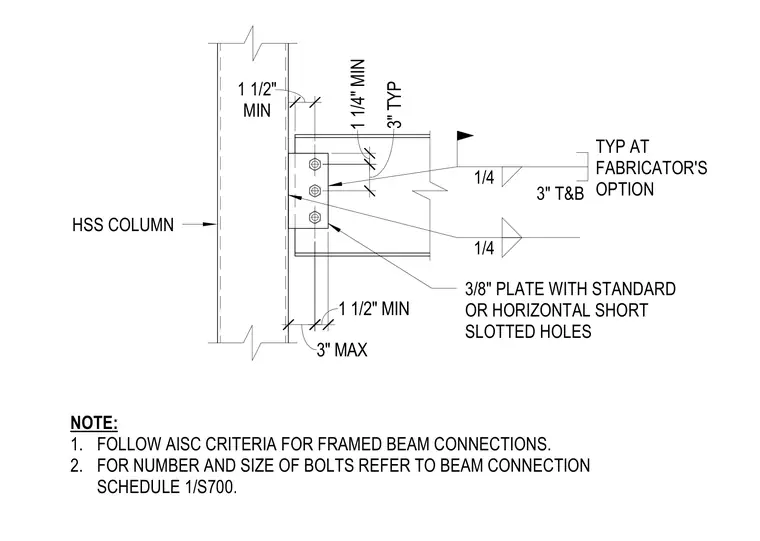

A single plate is welded to the face of a hollow structural section column using a quarter-inch fillet weld at the fabricator's option, top and bottom. The steel beam web bolts to the three-hole shear tab with standard or horizontal short slotted holes. Edge distances and bolt spacings maintain one and a half inch minimums and three inch maximums per AISC criteria. Bolt quantity and size are determined by the structural schedule.
HSS COLUMN 3/8" PLATE WITH STANDARD OR HORIZONTAL SHORT SLOTTED HOLES 3" MAX 1 1/2" MIN 1 1/4" MIN 3" TYP 2 1/4" 1 1/2" MIN 1/4 NOTE: 1. FOLLOW AISC CRITERIA FOR FRAMED BEAM CONNECTIONS. 2. FOR NUMBER AND SIZE OF BOLTS REFER TO BEAM CONNECTION SCHEDULE 1/S700. 1/4 TYP AT FABRICATOR'S OPTION 3" T&B
