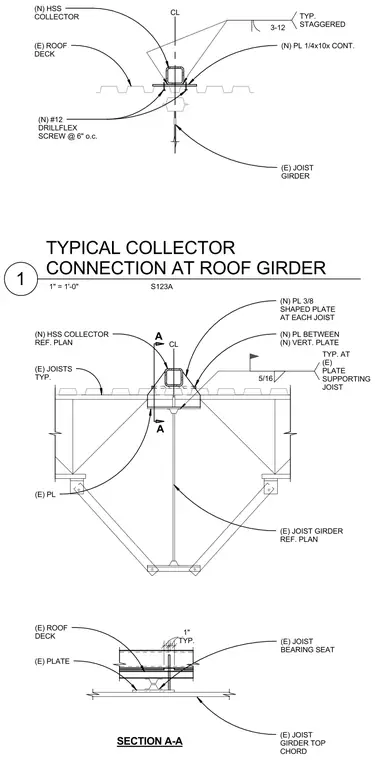

A new hollow structural section collector aligns over an existing roof deck and is fastened with number twelve drillflex screws spaced at six inches on center through a continuous quarter-inch by ten-inch plate. A new three-eighths-inch shaped plate connects at each joist alongside a vertical plate, welded to the existing supporting plate with five-sixteenths-inch fillet welds. The existing joists bear upon the joist girder top chord with specific clearances and plates as referenced in the structural plan.
(E) ROOF DECK (N) HSS COLLECTOR CL (N) PL 1/4x10x CONT. (E) JOIST GIRDER 3-12 TYP. STAGGERED (N) #12 DRILLFLEX SCREW @ 6" o.c. (E) JOISTS TYP. (N) HSS COLLECTOR REF. PLAN (N) PL 3/8 SHAPED PLATE AT EACH JOIST (E) PL (E) JOIST GIRDER REF. PLAN A A (N) PL BETWEEN (N) VERT. PLATE CL 5/16 TYP. AT (E) PLATE SUPPORTING JOIST TYP. 1" TYP. 1" (E) JOIST BEARING SEAT (E) JOIST GIRDER TOP CHORD (E) PLATE SECTION A-A (E) ROOF DECK 1" = 1'-0" S123A TYPICAL COLLECTOR CONNECTION AT ROOF GIRDER 1
