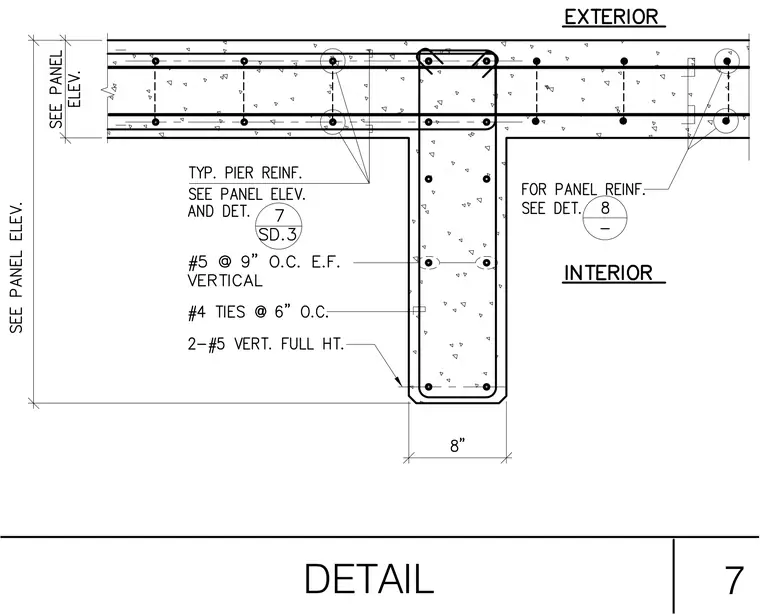

A reinforced concrete wall panel meets an interior concrete pier, detailed with number 5 vertical reinforcing bars spaced at 9 inches on center each face and number 4 ties at 6 inches on center. Two number 5 vertical bars run the full height of the 8-inch wide pier. Typical pier reinforcement and panel reinforcement are cross-referenced to panel elevations and detail numbers on sheet SD.3.
