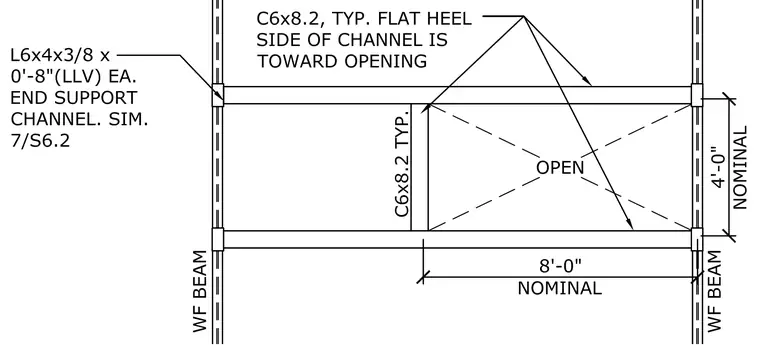

This structural framing assembly incorporates C6x8.2 channel members typically positioned with the flat heel side toward the opening. The channels are supported at each end by L6x4x3/8 angles measuring zero feet, eight inches in length with long legs vertical. The horizontal and vertical framing members frame between wide flange beams to create an eight-foot nominal width by four-foot nominal height opening.
