Structural · S-5HT59

Steel Joist to Beam Connection with Curtain Wall Support

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Curtain Walls Roofs Decks Arches Connections / Plates

About this detail

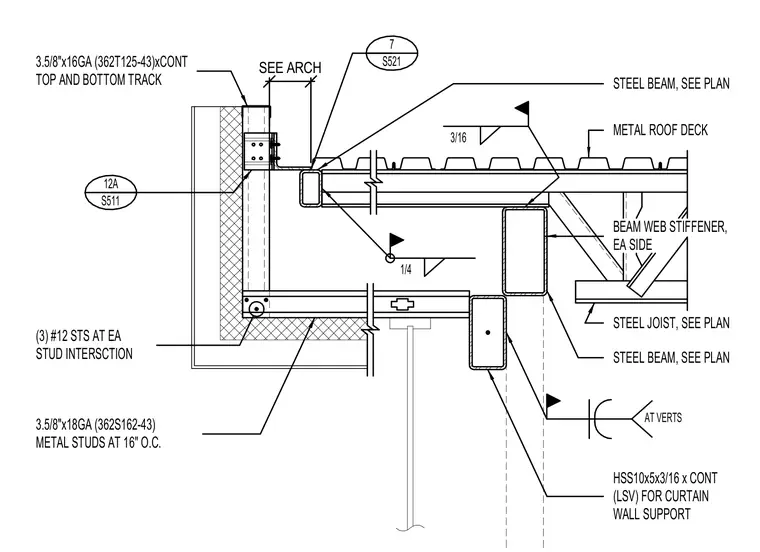

A steel joist bears onto a structural steel beam sized per plan, welded with a quarter-inch fillet weld. A continuous hollow structural section measuring 10 by 5 by 3/16 inches serves as a curtain wall support member, secured with field welds and connected to cold-formed metal framing studs measuring 3.5/8 inches by 18 gauge spaced at 16 inches on center. The cold-formed framing utilizes continuous top and bottom tracks measuring 3.5/8 inches by 16 gauge, fastened with three number 12 self-tapping screws at each stud intersection. A beam web stiffener is welded to each side of the beam web using three-sixteenths inch fillet welds.
