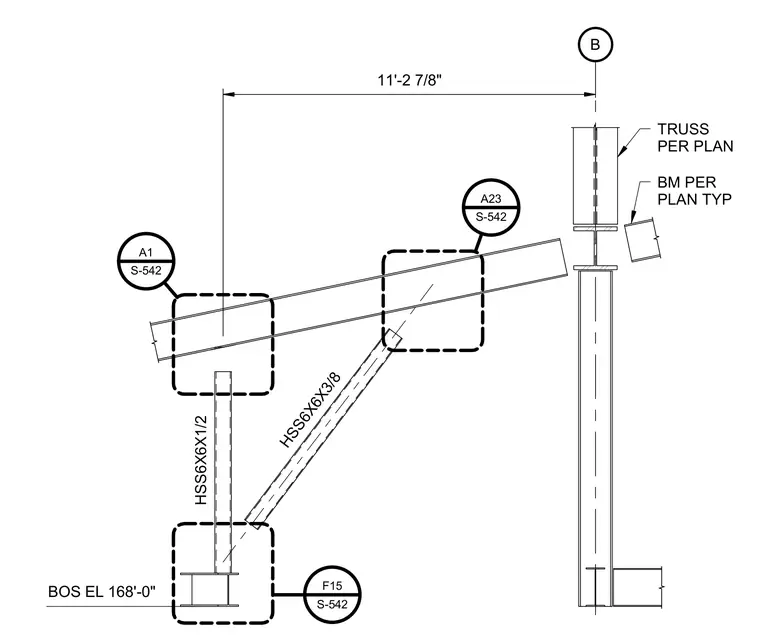

This structural steel assembly connects hollow structural section 6x6x1/2 vertical members and hollow structural section 6x6x3/8 diagonal web members to form a truss frame. The top chord is tied to a main column line with beam connections sized per plan at an elevation of 168 feet 0 inches. Multiple detail reference callouts link the component intersections to other structural sheets.
B 11'-2 7/8" F15 S-542 A23 S-542 A1 S-542 BOS EL 168'-0" HSS6X6X1/2 TRUSS PER PLAN BM PER PLAN TYP HSS6X6X3/8
