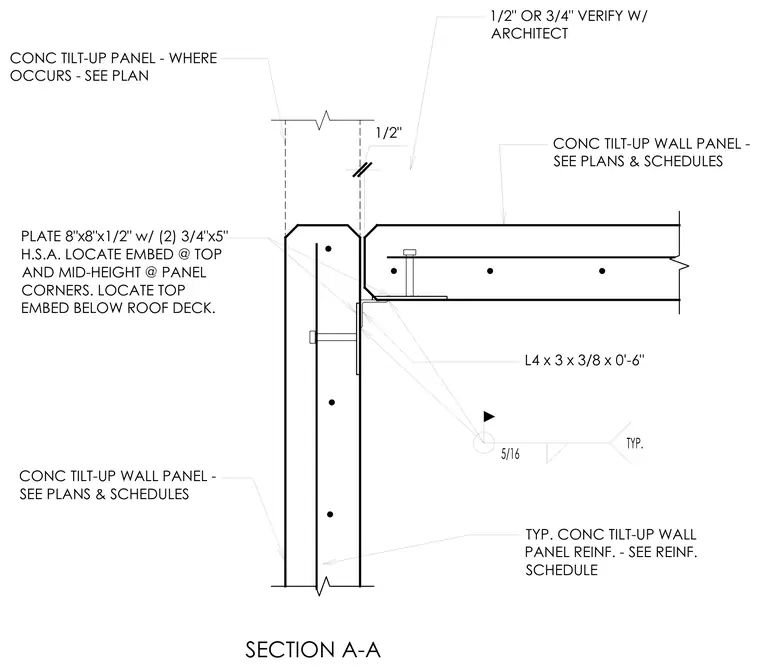

Concrete tilt-up wall panels meet at a corner with a specified half-inch to three-quarter-inch joint gap to be verified with the architect. An eight-inch by eight-inch by half-inch embed plate with two three-quarter-inch by five-inch headed stud anchors is located at the top and mid-height at panel corners, with the top embed positioned below the roof deck. A four-inch by three-inch by three-eighths-inch angle measuring six inches long spans the corner and is welded with five-sixteenth-inch typical fillet welds. Panel reinforcement is sized per the structural plans and schedules.
CONC TILT-UP WALL PANEL - SEE PLANS & SCHEDULES PLATE 8"x8"x1/2" w/ (2) 3/4"x5" H.S.A. LOCATE EMBED @ TOP AND MID-HEIGHT @ PANEL CORNERS. LOCATE TOP EMBED BELOW ROOF DECK. CONC TILT-UP WALL PANEL - SEE PLANS & SCHEDULES TYP. 5/16 TYP. CONC TILT-UP WALL PANEL REINF. - SEE REINF. SCHEDULE L4 x 3 x 3/8 x 0'-6" CONC TILT-UP PANEL - WHERE OCCURS - SEE PLAN 1/2" OR 3/4" VERIFY W/ ARCHITECT 1/2" SECTION A-A
