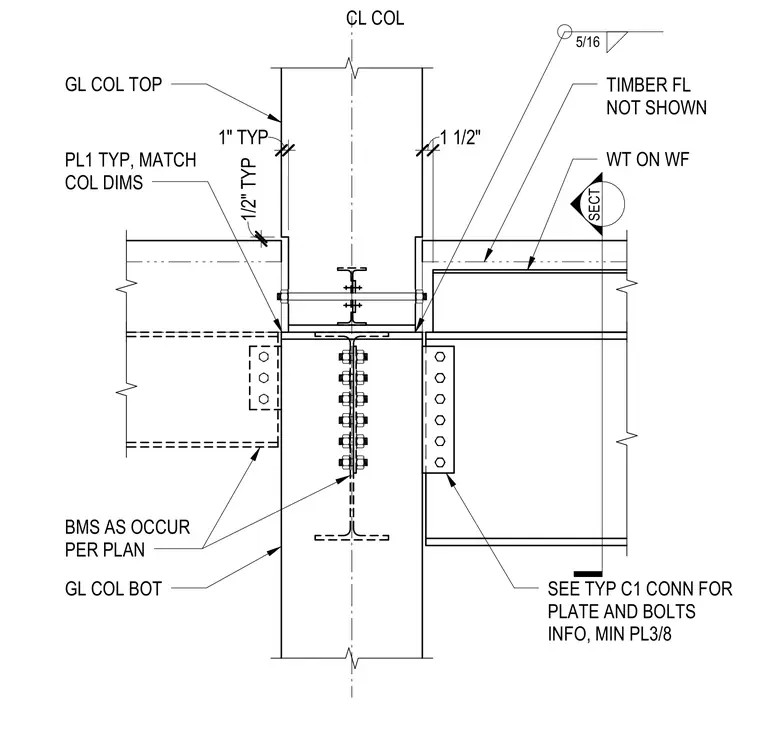

This structural connection detail features a timber column pin connection tying into wide-flange beams and steel plates. Steel plate PL1 matches the column dimensions with typical one-inch and half-inch clearances. Additional beams occur per plan with a minimum three-eighths-inch plate sized according to typical connection C1. Fillet welds are specified at five-sixteenths inch where indicated.
SECT CL COL 1" TYP 1/2" TYP 1 1/2" GL COL TOP PL1 TYP, MATCH COL DIMS TIMBER FL NOT SHOWN WT ON WF SEE TYP C1 CONN FOR PLATE AND BOLTS INFO, MIN PL3/8 BMS AS OCCUR PER PLAN GL COL BOT 5/16
