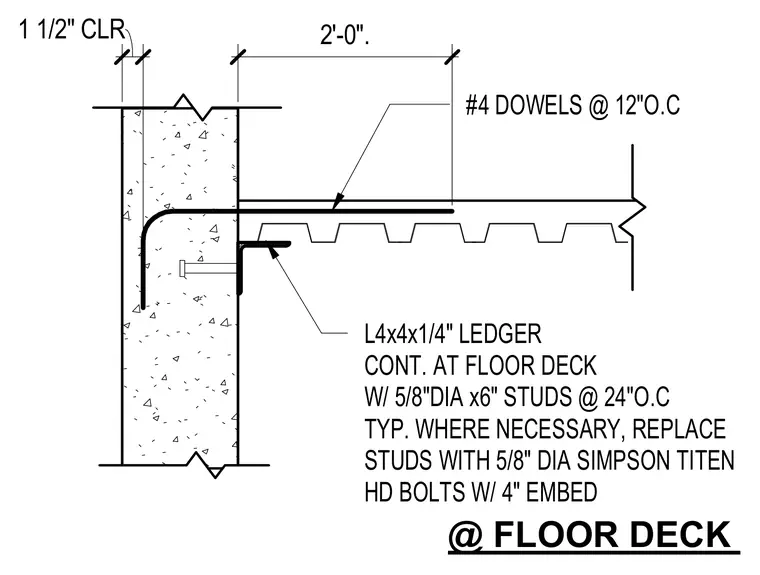

A continuous 4-by-4-by-1/4-inch steel ledger angle fastens to the concrete wall using five-eighths-inch diameter by 6-inch studs spaced at 24 inches on center. Where necessary, studs are replaced with 5/8-inch diameter Simpson Titen HD bolts providing 4 inches of embedment. Number 4 dowels spaced at 12 inches on center extend from the concrete wall into the floor deck assembly with a 1-1/2-inch concrete clearance.
L4x4x1/4" LEDGER CONT. AT FLOOR DECK W/ 5/8"DIA x6" STUDS @ 24"O.C TYP. WHERE NECESSARY, REPLACE STUDS WITH 5/8" DIA SIMPSON TITEN HD BOLTS W/ 4" EMBED @ FLOOR DECK 1 1/2" CLR 2'-0". #4 DOWELS @ 12"O.C
