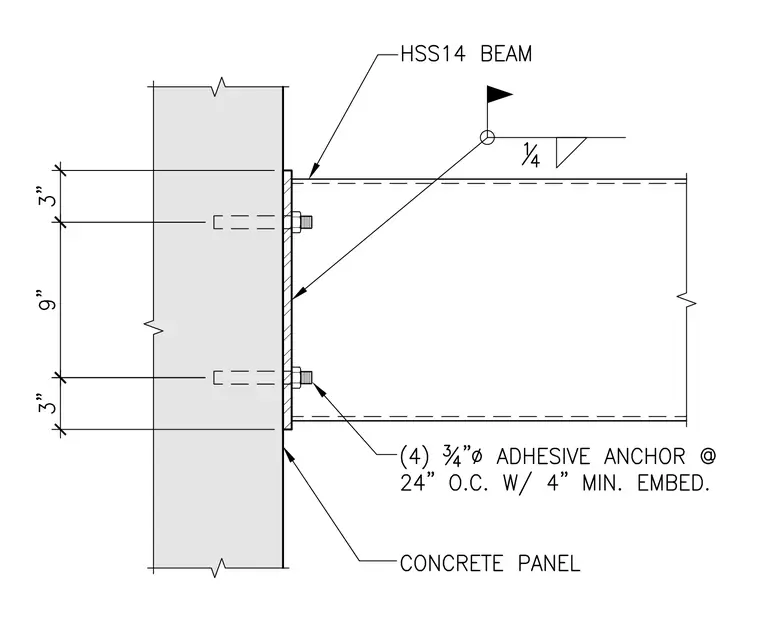

An HSS14 beam connects to a concrete panel using an end plate welded with a quarter-inch fillet weld. The connection is anchored to the concrete panel with four three-quarter-inch diameter adhesive anchors spaced at nine inches vertically with three-inch edge clearances and four inches of minimum embedment.
