Structural · S-5HAR9

Hollow Structural Section Tie Rod Connection to Existing Built-Up Column

Materials

Concrete Steel Brick

Elements

Columns Beams Roofs Floors / Slabs

Connections

HSS Connection

About this detail

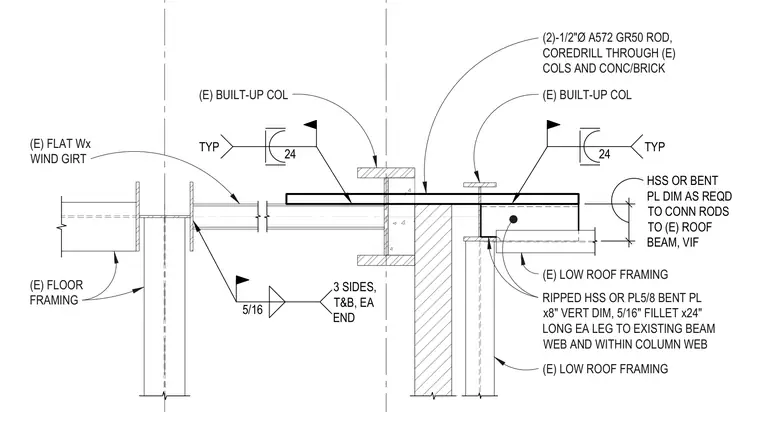

Two one-half inch diameter A572 Grade 50 threaded rods core-drill through existing columns and concrete or brick masonry to tie the structural framing together. A hollow structural section or five-eighths inch bent plate measuring eight inches in vertical dimension connects the rods to the existing roof beam, verified in field. A five-inch fillet weld extends twenty-four inches long on each leg to the existing beam web and within the column web. Additional structural support is provided by an existing flat wide-flange wind girt and low roof framing adjacent to the existing built-up columns.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
