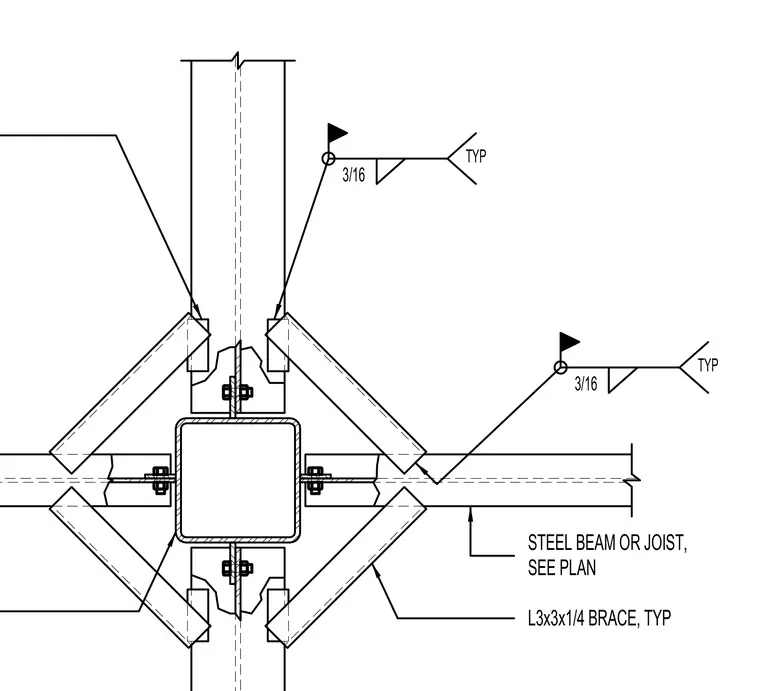

An L3x3x1/4 structural steel angle brace connects to a hollow structural section column through gusset plates, with steel beams or joists framed per plan. Three-sixteenth-inch typical fillet welds secure the angle braces with field weld symbols indicated. Bolted connections anchor the gusset plates and framing elements.
